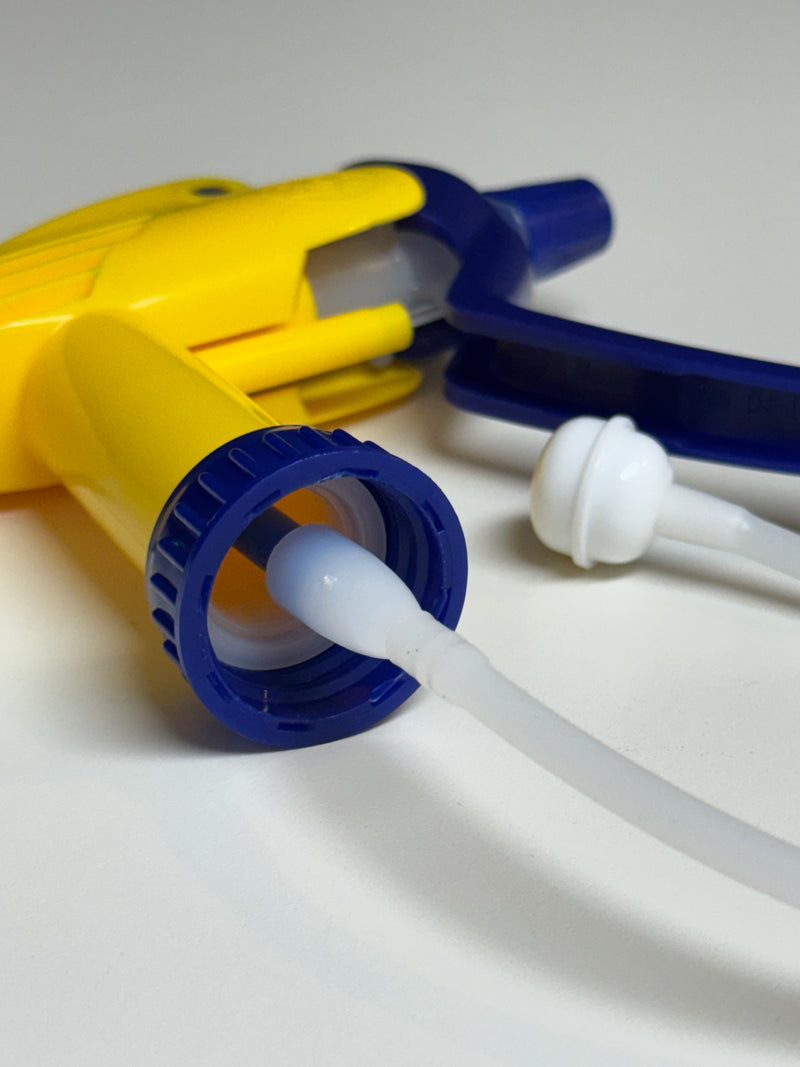

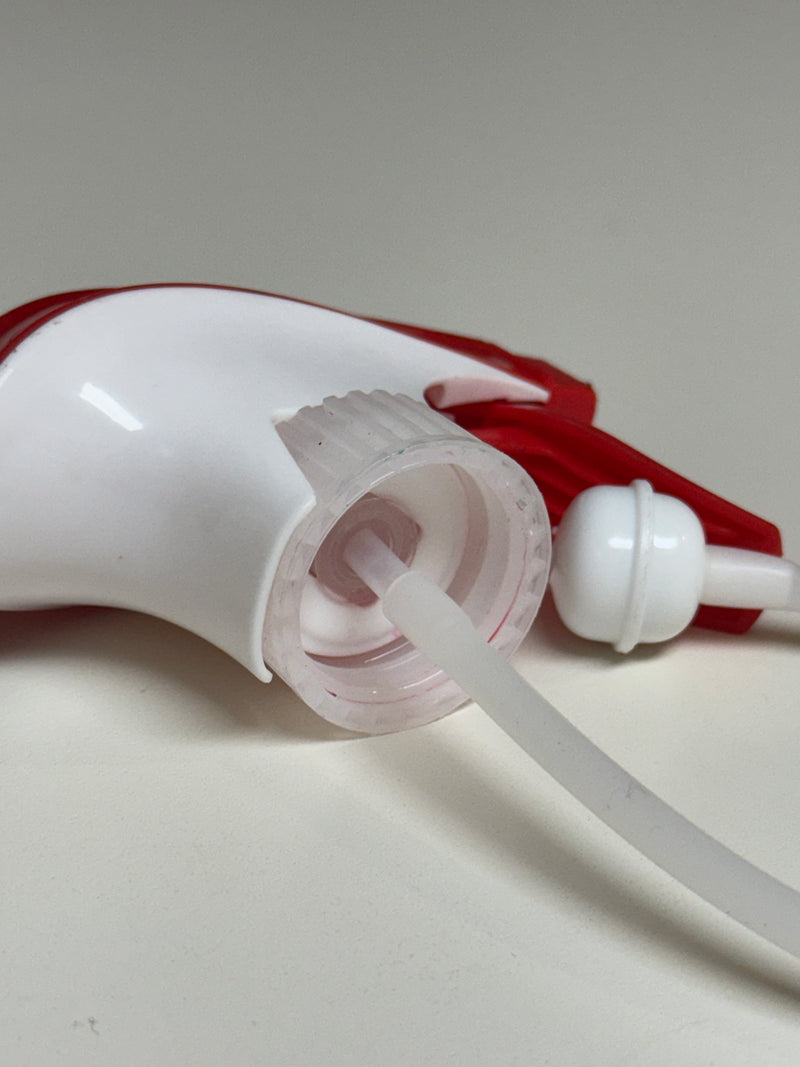

Tilted™ attaches 2 different ways depending on the trigger sprayer. Please check instructions and the video linked above to see how it works!

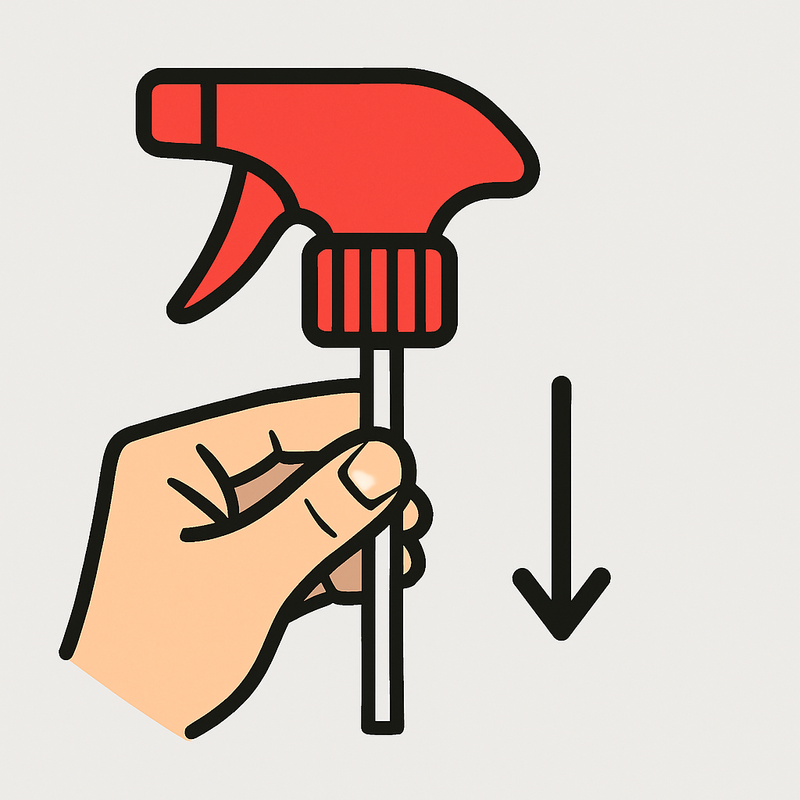

1. Remove your current tube

   Unscrew the sprayer and pull off the original dip tube.
2. Attach TILTED™

   Push the TILTED™ tube firmly onto the bottom of the sprayer. Make sure it’s fully seated.
3. Check the fit

   Place it into your bottle and make sure the weighted end can move freely.

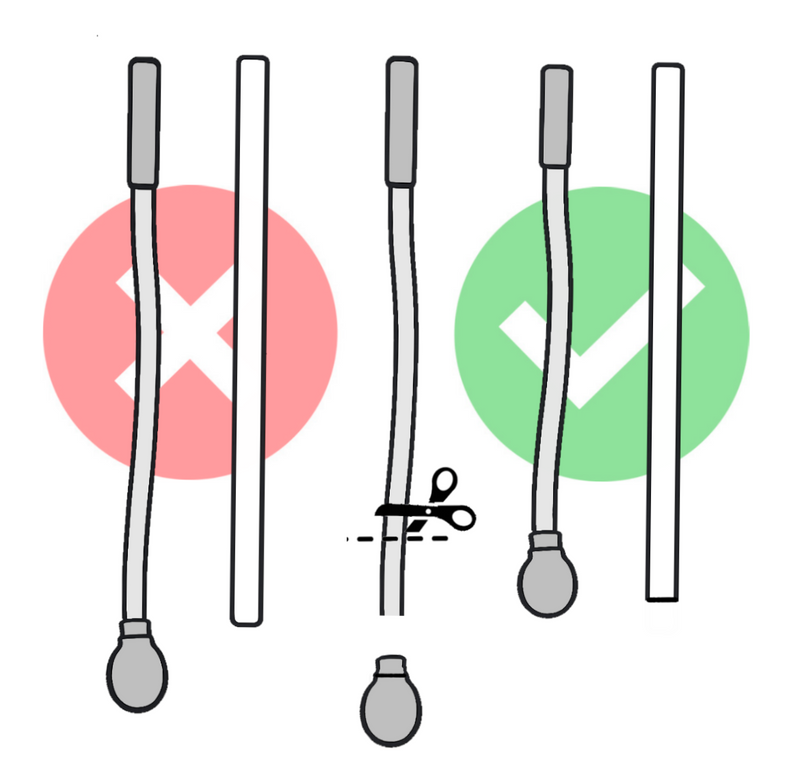

4. Trim if needed

   If the tube is too long, trim a small amount at a time until it fits properly.
5. Test spray

   Fill the bottle and test upright first, then tilt to confirm it sprays correctly.

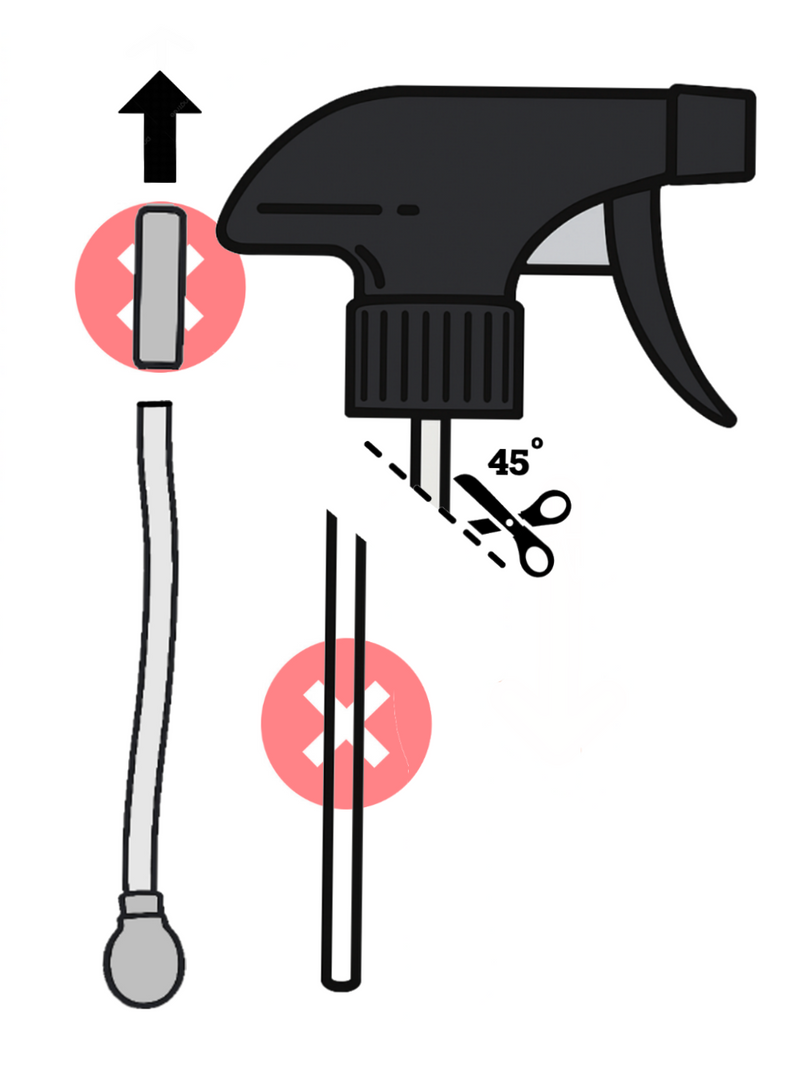

What if it doesn’t fit my sprayer?

Some sprayers have smaller connection points.

• You can cut a short section of your original tube and use it as a connector
• Then insert the TILTED™ tube into that piecedsdf

How do I know if it’s installed correctly?

• The tube stays attached when spraying
• The weight moves freely inside the bottle
• It continues spraying when tilted

Can I use it with any bottle?

TILTED™ fits most standard:

• 28/400
• 28/410 sprayers

If your bottle uses a standard trigger sprayer, it will usually work.

Standard TILTED™ (Most common choice)

Best for everyday use.

Works with:

• All-purpose cleaners (APC)
• Degreasers
• Glass cleaners
• Interior/detail sprays
• Most water-based chemicals

👉 This version is more flexible, allowing full 360° spray (including upside down)

TILTED™ Acid-Resistant (For harsh chemicals)

Built for stronger, more aggressive chemicals.

Recommended for:

• Wheel acids
• Acid-based cleaners
• Strong industrial chemicals
• Solvent-heavy products

👉 Uses a more durable tube that resists breakdown from harsh chemicals

What’s the difference in performance?

• Standard:More flexibleSprays at any angle (360°)
• Acid-Resistant:More rigidSprays side-to-side (~180°)Not designed for upside-down use

Which one should I choose?

• Use Standard if you’re using typical cleaners
• Use Acid-Resistant if you’re using harsh or acidic chemicals

👉 If you’re unsure, standard works for most applications

Can I use the standard version with strong chemicals?

We don’t recommend it.

Harsh chemicals can:

• Break down the tubing over time
• Reduce lifespan
• Affect performance

Can I use the acid version for everything?

Yes—but keep in mind:

• It won’t spray upside down
• It’s slightly stiffer

👉 It’s built for durability, not maximum flexibility

Why are there two versions?

Because no single material does both perfectly.

• Flexible = better movement (360°)
• Chemical-resistant = more rigid (180°)

We built both so you can choose what matters more:

👉 Flexibility or chemical durability

Yes! All Tilted Spray Co. products come with a 365 day warranty covering defects in materials and workmanship, as well as product failure! We're confident in our quality and stand behind every product we make. Use the warranty if you need to.
